性能特點

*RM200QC便攜式影像分光色差儀無需連接軟件即可獨立完成質控工作；標準數據通過儀器采集，無需標準數據輸出/輸入

*RM200QC便攜式影像分光色差儀采用單一容差設置，即時顯示樣品通過或不合格，測量結果可以自動平均。

*RM200QC便攜式影像分光色差儀采用快速比較測色模式，無需存儲樣品；測量時間僅需 1.8秒，可以滿足大工作量質檢的需求

*可視化樣品檢測與樣品狀態記錄

*RM200QC便攜式影像分光色差儀采用了45/0 圖像捕獲光學結構和獨立三方向圖像捕獲技術，可在1秒內準確獲取27副顏色照片，并形成準確的三維圖片，確保測量結果與目測的一致性更好。

*RM200QC便攜式影像分光色差儀采用25個 LED光源包括8個可見光從三個獨立方向入射和1個UV

*RM200QC便攜式影像分光色差儀可儲存20個標準和350個樣品檢測數據，標準數據可以直接通過RM200QC采集，而無需輸出/輸入

*RM200QC便攜式影像分光色差儀采用4&8mm可變測量孔徑,可對樣品形狀和表面紋理有更好的適應性

*人體工學設計確保了極佳的便攜性與舒適的手握操作

*RM200QC還配備了4.5cm TFT彩色顯示屏 ，具有亮度高，層次感強、顏色鮮艷的顯著特點。

*RM200QC便攜式影像分光色差儀用戶界面采用了模擬色塊和色彩空間圖，對使用者更為友好，使得操作更簡便直觀，并且專門為中國地區用戶開發了簡體中文系統。

*RM200QC便攜式影像分光色差儀配有USB數據接口以備數據存儲裝置模式輸出打印檢測報告，可快捷生成樣品文本或語音標簽

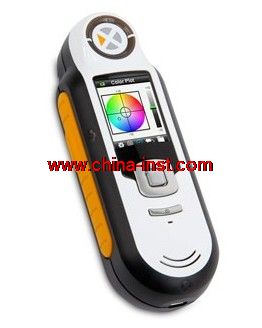

Portable Imaging Spectrocolorimeter

	The Color Plot Imaging Spectrocolorimeter bridges the gap between color appearance and material — from incoming material batches to outgoing product shipments — in an elegant, portable unit that fits comfortably in your hand.
	Display. Communicates color information instrument status and option. Measure button. Two stage button; press lightly to start preview and firmly to measure. Navigation control. Enter button. Selects menu items and opens tag menu. Power on/off. Speaker and Microphone. For recording and playback of voice tags. USB connection. USB connection for charging the battery and interface to computer or printer.
	The Color Plot is lightweight, easy to handle and comes ready to use. In barely more than a second you get a reading on your sample and a report that tells you how close your color is to a measured standard. That’s it. You won’t need to connect to a software program; it’s all right at hand.

Build a Complete Color Program
For the ultimate in performance, the Color Plot is ideal for use with Munsell/Pantone color standards. The production of these standards requires tight manufacturing tolerances, promoting a synchronous relationship between visual and measured results of color evaluation at any location. This, in turn, provides the consistency needed to maintain an accurate, reliable color program.
	Quickly and easily measure and compare samples with intuitive user interface.	Create and store up to 20 standards using the averaging function for highest accuracy.	Measure samples and display Pass/Fail warnings. Save up to 350 samples with voice or text tags.	Simple to understand color plot shows the difference between standard and sample.
	Color Plot provides accurate L*a*b*C*H* standard, sample and color difference values.	Verbal color descriptions help to understand and describe the direction of color difference.	Gray Scale and Strength functions are included for textile assessment. Color Plot offers superior ergonomics for this application and improved performance (compared to visual evaluation).	On board Opacity measurement provides accurate and flexible functionality for coatings and plastics.

The Color Plot automatically creates conformance reports in PDF and Excel formats, for the stored samples against each standard. These can be output to a computer or directly to a compatible printer (Printers supporting USB Memory stick with PDF file type).

Increased Quality Control

The Color Plot allows you to measure up to 20 reference standards and store these on the device, each date and time stamped with the option to name them using the onscreen keyboard. A maximum of 350 sample measurements can be stored on the device and compared to the reference standards. Test results are easily seen with: • Graphical Pass/Fail indicator • Display of dE for all common methods i.e. CIELAB, CMC, CIE 94, 2000 • Display of measured and delta differences with L*a*b*C*hº for standard and sample • Graphical L*a*b* plot • Verbal color difference description Tagging your samples whether using the onscreen keyboard for text or the built-in voice recorder makes it easy to identify your measurements. If you need a more in-depth report, Color Plot automatically creates PDF and CSV files that can be accessed on your computer with the device set in the “USB Report Mode”. It’s as simple as plugging in a memory stick!

Quick Responsive Tools

When you want just a quick check, Color Plot provides: “Color Compare” automated measurement for standard and sample comparison. “Opacity Check” measurement function to control the covering power of coatings. “Gray Scale” measurement for stain and color change assessment on textiles. Color Plot offers superior ergonomics for this application (compared to a benchtop spectrophotometer measurement), and improved performance (compared to visual evaluation). “Strength” measurement for any manufacturing process that requires control and adjustment of color component strength. Technical Data Measuring Geometries: 45/0 Image Capture Light Source: Independent tri-directional 25 LED (8* visible wavelengths; 1* UV) Illuminant/Observer: D65/10 and A/10 Standards/Sample Storage: 20/350 Measurement Time: 1.8 seconds Measurement Area: 4 & 8 mm Short Term Repeatability: Typical 0.10 DE 94 on white (D65/10) Display: 4.5cm Color TFT Data Interface: USB (Mass Storage Device) Operating Temp.: 0° to 40°C (50° to 104°F) Storage Temp.: -20 to 60°C (-4° to 140°F) Humidity Range: 20-80% RH (non-condensing) Usage: Indoor use only Altitude: 2000m Pollution Degree: 2 Transient Overvoltage: Category II
